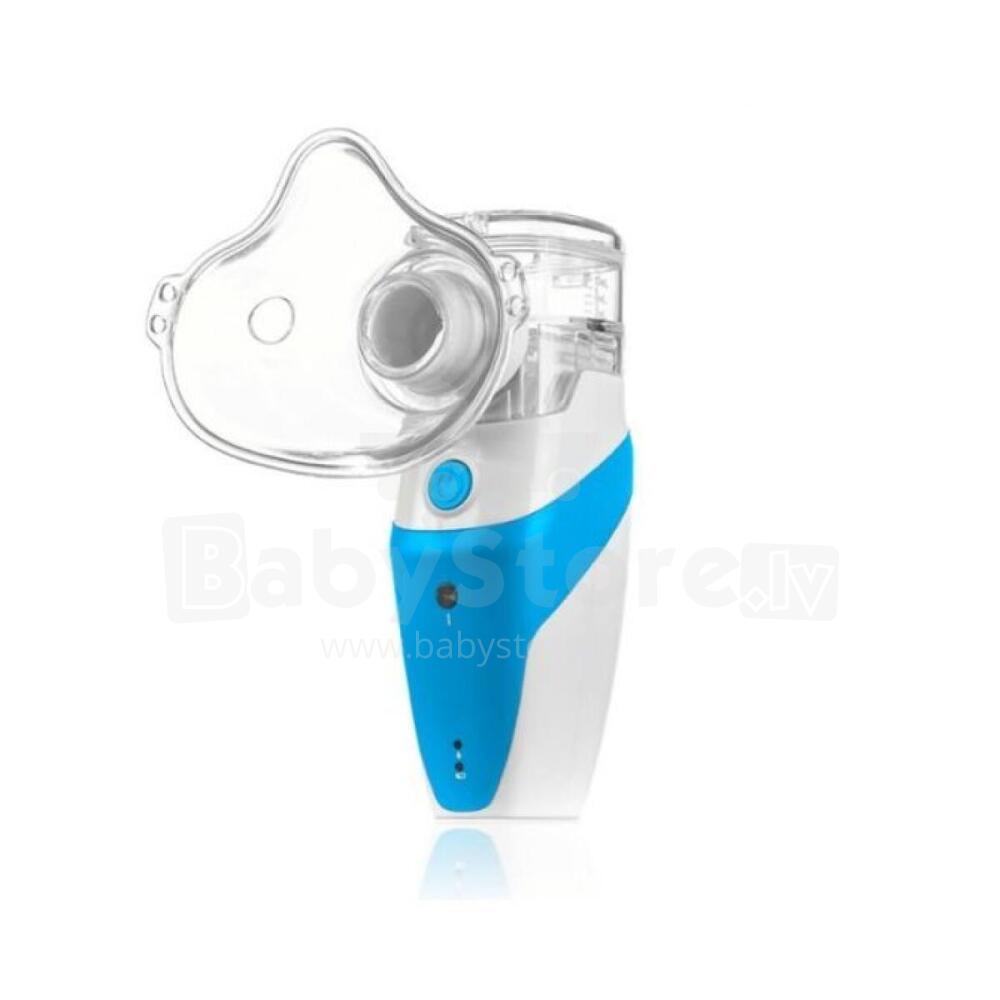

0529 PORTABLE INHALER NBM-4B

Portable, ultrasonic inhaler
for conscious patients
Model: NBM-4B
The mesh inhaler is an ideal device for inhaling medication. Due to its small size and extremely quiet operation, it is perfect for inhaling small children and infants. NBM-4B allows you to choose from 2 spray speeds. The inhaler is very small, lightweight and powered by a built-in rechargeable lithium battery. Charging is done using a USB cable and a fully charged device allows for approx. 3 hours of operation.

2 SPRAY LEVELS
The inhaler allows you to choose the spray speed, which is useful for people with shallow breathing who cannot take a large amount of medication in one breath. Slower spray is also useful during inhalations aimed at moisturizing the respiratory tract. A higher level of spray speed will be appreciated by parents of the youngest patients, for whom inhalation time is of great importance. After starting the inhalation, the default setting is faster spraying (bright green diode), to reduce the speed during inhalation, press the power button again, then the LED diode will change to dark green.

COMFORTABLE
The mesh inhaler is an exceptionally small and light device for inhaling medication. The NBM-4B weighs approx. 115 g and fits in the palm of your hand. In addition to its small size and low weight, the advantage of this inhaler is the way it is powered. The built-in lithium battery is rechargeable, and its full charge takes approx. 3 hours. The inhaler can work every day for 8 days on a single charge, 20 minutes a day. When the battery level is low, the LED diode flashes yellow. The mesh inhaler is extremely quiet, so the sound is not tiring for the patient. During inhalation, you can watch TV or listen to music, which makes the process much easier for impatient children. All the above features make inhalation with the NBM-4B exceptionally comfortable. The inhaler is mobile and takes up little space, which makes it easier to inhale medications even when traveling.

EFFECTIVE AND EFFICIENT
The NBM-4B inhaler uses mechanical energy, which causes the liquid to vibrate. The drug passes through micropores in the spray mesh and is administered to the patient in the form of an aerosol. In the NBM-4B, over 60% of the particles are in the range of 0.5-5μm, this parameter is commonly called the respirable fraction. In the portable ultrasonic inhaler, the MMAD is 2.3μm, which means that 50% or more of the particles are 2.3μm in size. With this device, you can take most of the nebulized drugs available in pharmacies. The drug container holds up to 10 ml of solution, and the nebulization speed is 0.2 ml.

PACKAGE CONTENTS:

1 X Inhaler (main unit)

1 X Medication container (with spray mesh)

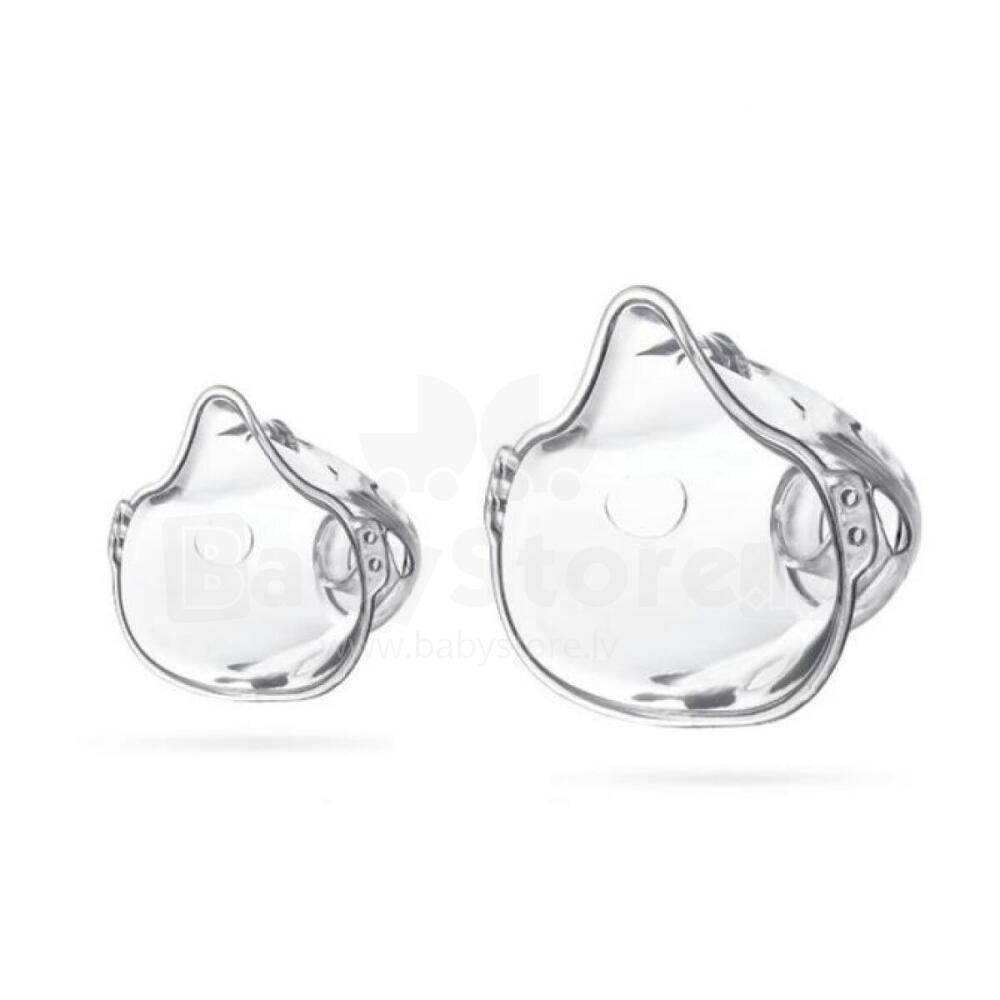

1 X Adult mask

1 X Child mask

1 X Mouthpiece

1 X USB cable

1 X Instructions

Intended use

Transforming the medicine into an aerosol for use in treatment. The product is intended for use in conscious people, children and adults of all ages, in hospital conditions (except intensive care units) and as a family inhaler.

TECHNICAL DATA
Dimensions
41 x 67 x 125 mm
Weight
114 g
Power source
3.7 V DC lithium battery or 5V DC external power supply
Sound pressure level
less than 50 dB
Operating environment
Temperature: 10~40°C Relative humidity: 10%-95% (non-condensing) Atmospheric pressure: 860-1060 hPa
Storage/transportation environment
Temperature: -20~70°C Relative humidity: 10%-95% (non-condensing) Atmospheric pressure: 500-1060 hPa
Power consumption
less than 2W
Medication container capacity
10 ml
Particle size
0.5 -5 μm (60% or more)
MMAD
2.3 μm +/-25%
Nebulization rate
0.2 ml/min
Drug residue
less than 0.5 ml
