LITTLE FRAME, BIG TALENT.

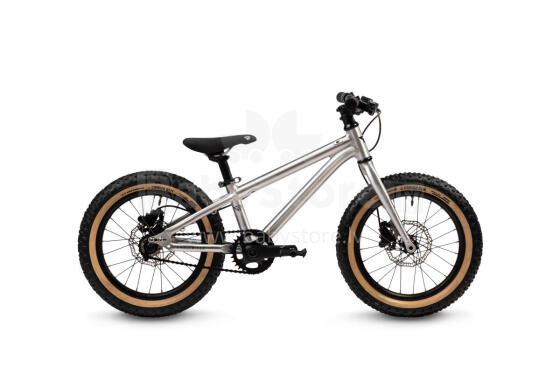

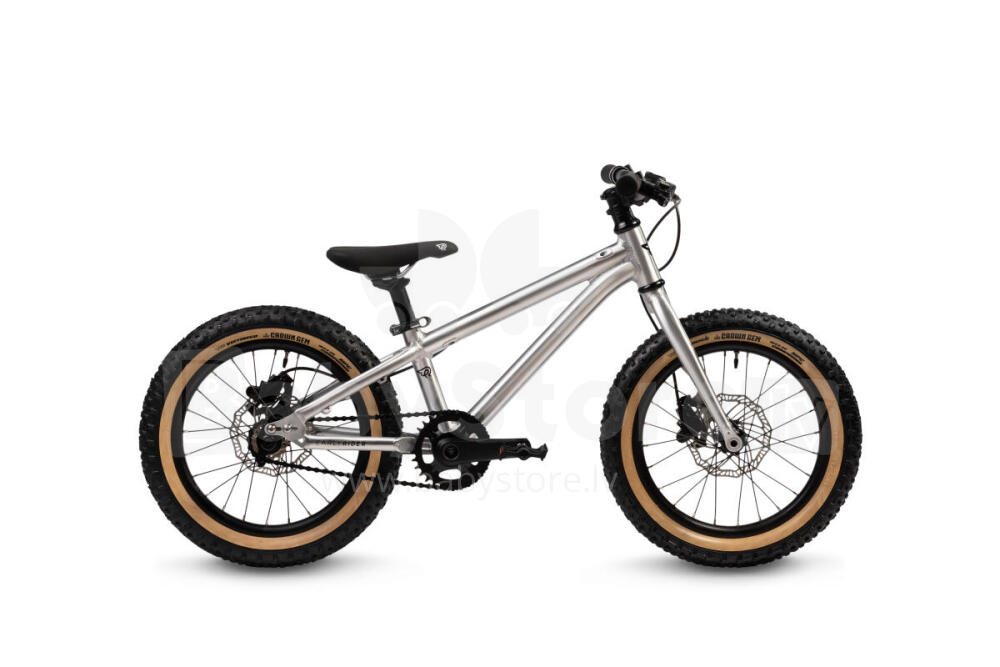

The Early Rider Hellion 16 bike designed for young riders who are eager to push their limits and explore new horizons on two wheels. Crafted with precision and care, this bike offers unparalleled performance, capability, and configurability in the 16" category.
At its core lies a robust and lightweight frame set, meticulously constructed with triple-butted tubing and a CNC'd chain stay yoke. These features ensure that the bike is both strong and durable, leaving no room for weak points. The integration of 12mm thru axles in the front and rear guarantees precise wheel and disc alignment on every ride. Furthermore, the internal cable routing keeps everything tidy and out of the way, enhancing the bike's aesthetics and functionality.
Designed to cater to early riders daring to take on gaps and challenging terrain, the Early Rider Hellion 16 comes equipped with double-walled tubeless-ready rims on CNC'd hubs and straight-pull spokes. This setup provides excellent protection against casing, allowing young riders to tackle obstacles with confidence. The bike's long, low, and slack geometry further bolsters stability, inspiring young riders to take on new challenges fearlessly. Additionally, the short stay and quick handling enable easy maneuvering when faced with technical sections.
| STANDOVER HEIGHT |
43.5CM |
| FRAME |
TRIPLE BUTTED AL6061 INTERNAL CABLING, FORGED D/OUTS |
| FORK |
RIGID DISC AL6061, 12MM THRU AXLE, FORGED D/OUTS |
| STEERER |
TUBE AL6061 |
| CRANKS |
SAMOX 110MM DIRECT MOUNT, NQF |
| PEDALS |
ER RESIN PLATFORM, SEALED CARTRIDGE BEARING |
| BOTTOM BRACKET |
SAMOX 24MM EXTERNAL CUP, SEALED CARTRIDGE BEARING |
| RIMS |
16 x 24H, DOUBLE WALLED AL6061, TUBELESS COMPATIBLE |
| REAR HUB |
STRAIGHT PULL DISC, 12x142 THRU AXLE, 24H |
| FRONT HUB |
STRAIGHT PULL DISC, 12x100MM THRU AXLE, 24H |
| AXLES |
12MM AL7075 THRU AXLES, F + R |
| CHAIN |
KMC X10 |
| CHAINRING |
CNC'D STEEL 30T NARROW WIDE |
| WEIGHT |
6.8KGS W/O PEDALS |
| REAR CASSETTE |
ER SINGLE SPEED KIT |
| BRAKES |
PROMAX DSK926 HYDRAULIC JR, 140MM ROTORS |
| LEVERS |
PROMAX DSK926 JR |
| FRONT TYRE |
VEE CROWN GEM 16x2.25", 27TPI WB, SKINWALL |
| REAR TYRE |
VEE CROWN GEM 16x2.25", 27TPI WB, SKINWALL |
| HEADSET |
1 1/8” CARTRIDGE BEARING, CONVENTIONAL |
| STEM |
RITCHEY OS FORGED AL6061, 35MM REACH |
| BARS |
480MM RITCHEY OS AL6061, 18MM RISE |
| GRIPS |
ER SOFT TOUCH MUSHROOM 100MM |
| SEAT POST |
RITCHEY 27.2MM x 185MM |
| SADDLE |
ER WINGED, RAILED |
| SEAT CLAMP |
ER BOLT, 31.8MM |
| SPEC NOTICE |
Every effort has been made to ensure accuracy throughout this website. However, Early Rider reserves the right to change prices and bike specifications without prior notice |
