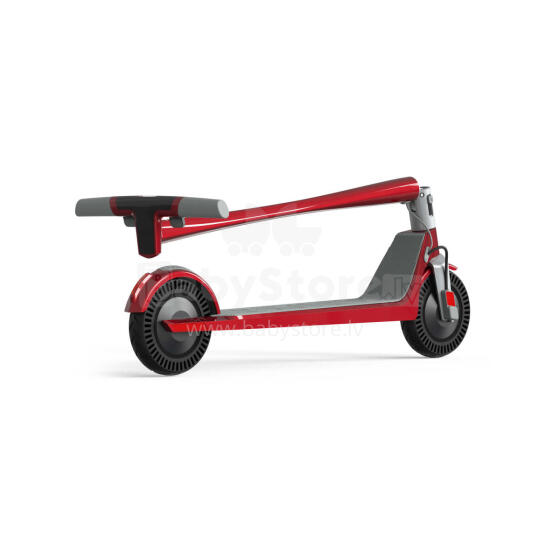

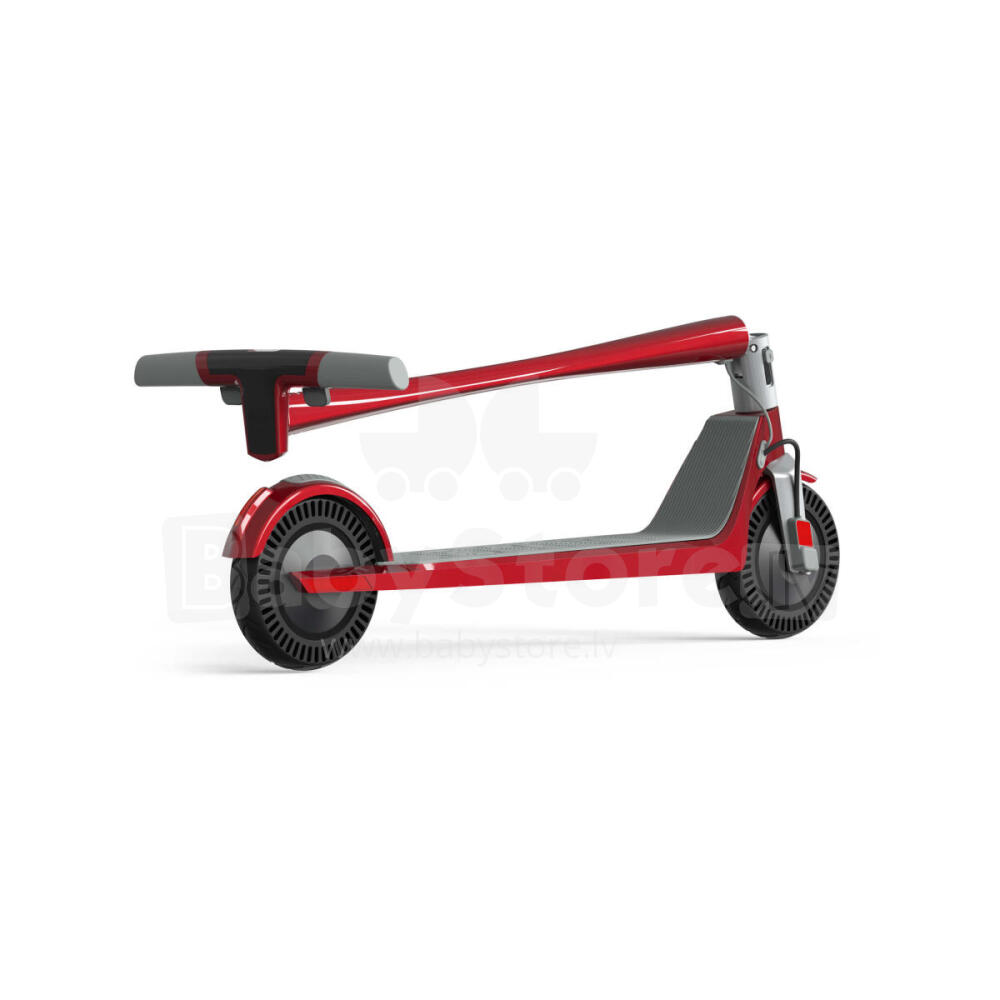

UNAGI Scooter Model One - Scarlet Fire Red / E500 Dual

The Model One - E500 Dual

SPECIFICATIONS

Dimensions E500
Scooter (before folding) 96 cm (L) x 42 cm (W) x 110 cm (H)
Scooter (after folding) 96 cm (L) x 42 cm (W) x 38 cm (H)
Package 45 cm * 19 cm * 108 cm

Basic Specs E500
Weight 12.02 kg
Material Aluminum + Carbon Fiber
Motor size 12.7 cm
Tire size 19.05 cm

Motor Specs E500
Riding modes
Eco 14.5-17.7 km/h
Std 17.7-20.9 km/h
Pro 24.1-25 km/h
Power Dual 250W motors
Maximum torque 32N.m
Instant maximum power 1000W
Motor control mode Sinusoidal Pulse Width Modulation (SPWM)

Brake E500
Braking distance Dry Road about 4m
Braking method Electronic brake E-ABS
Tire material maintenance-free rubber tire

Incline E500
Incline rate 15 degrees
Suggested use Cement, tarmac, no more than 2 cm stairs
no more than 2 cm bumps
Chassis height 8.3 cm
Water resistent level IP54

Light E500
Headlights 1.8W high brightness LED headlights
Taillights LED

Battery E500
Battery 9000mah lithium ion
Battery capacity 9.0Ah
Range 24.95 km
Charger power 67.2W
Charger input voltage 100-240V ~ 50 / 60HZ
Battery charging limit voltage 33.6V
Charging time 4-5 hours
Intelligent battery management system Temperature abnormality / short circuit /
under voltage automatic sleep / over current /
over charge / over discharge protection

Rider E500
Height 152-198 cm
Maximium weight 125 kg
