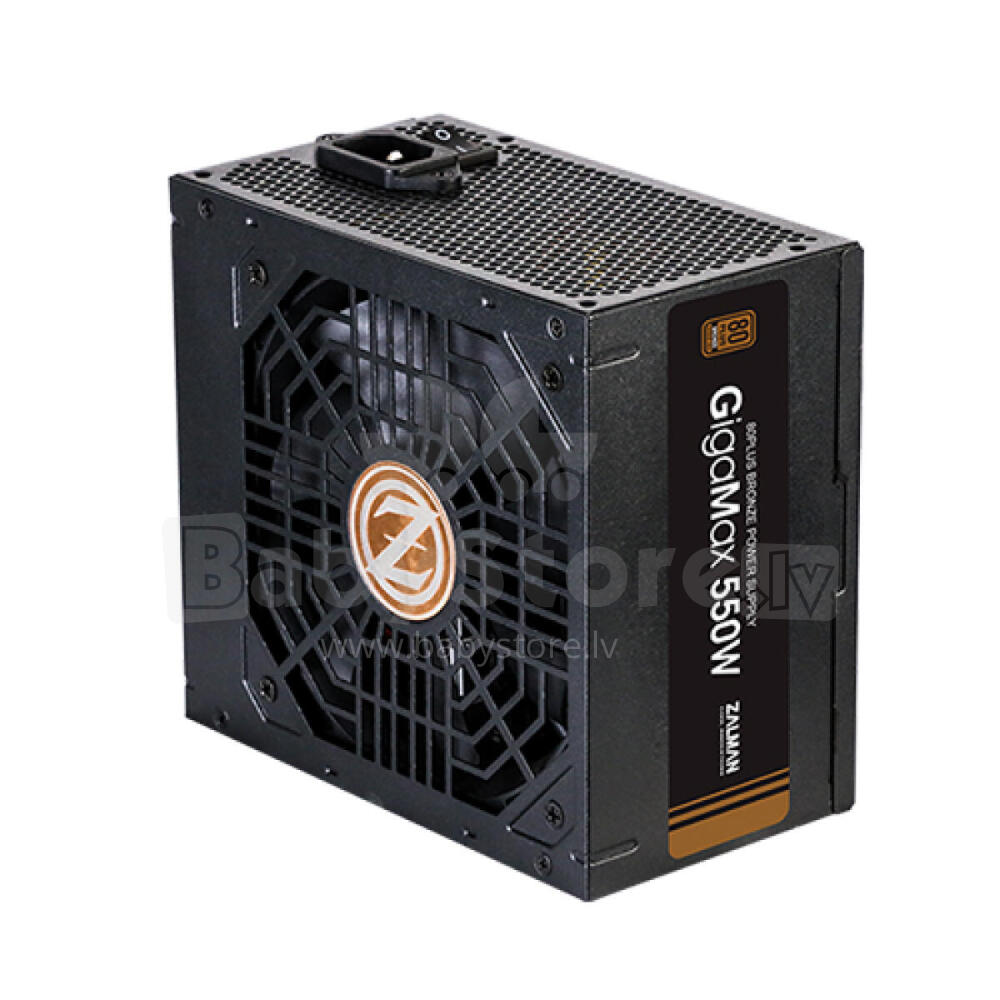

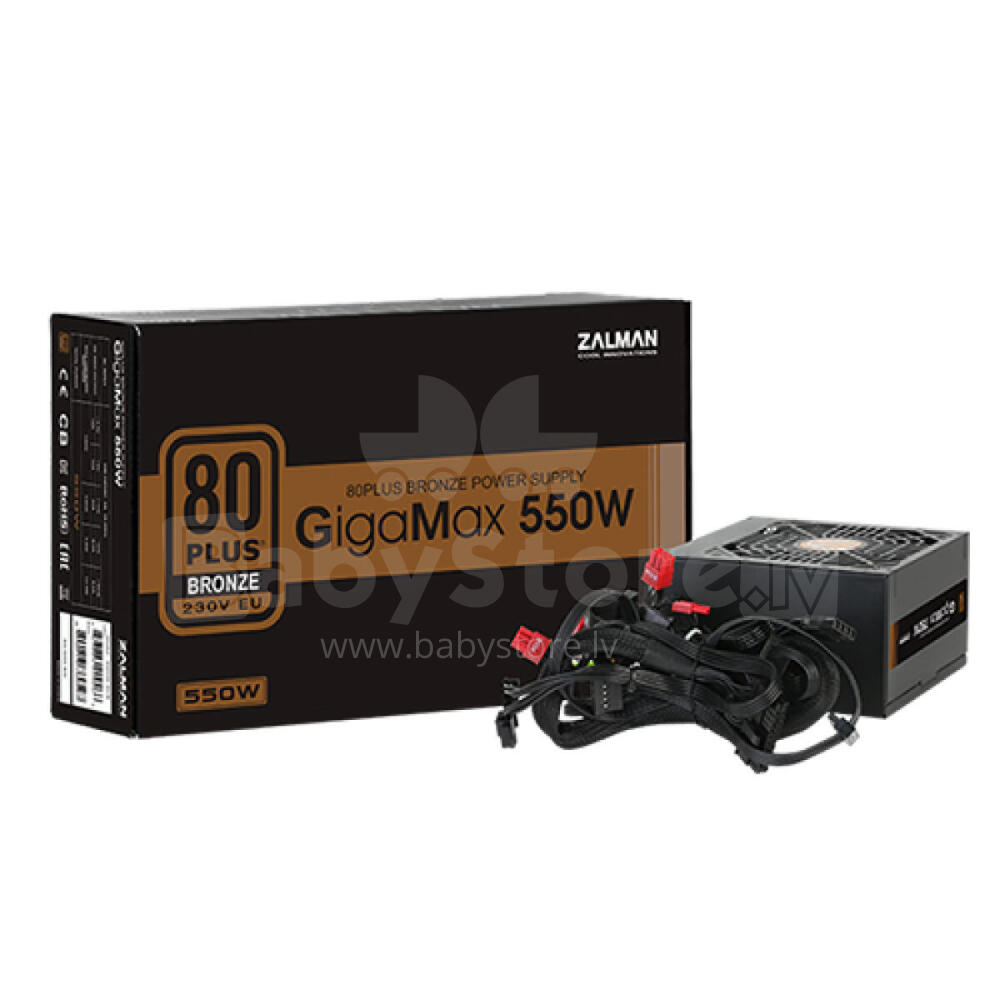

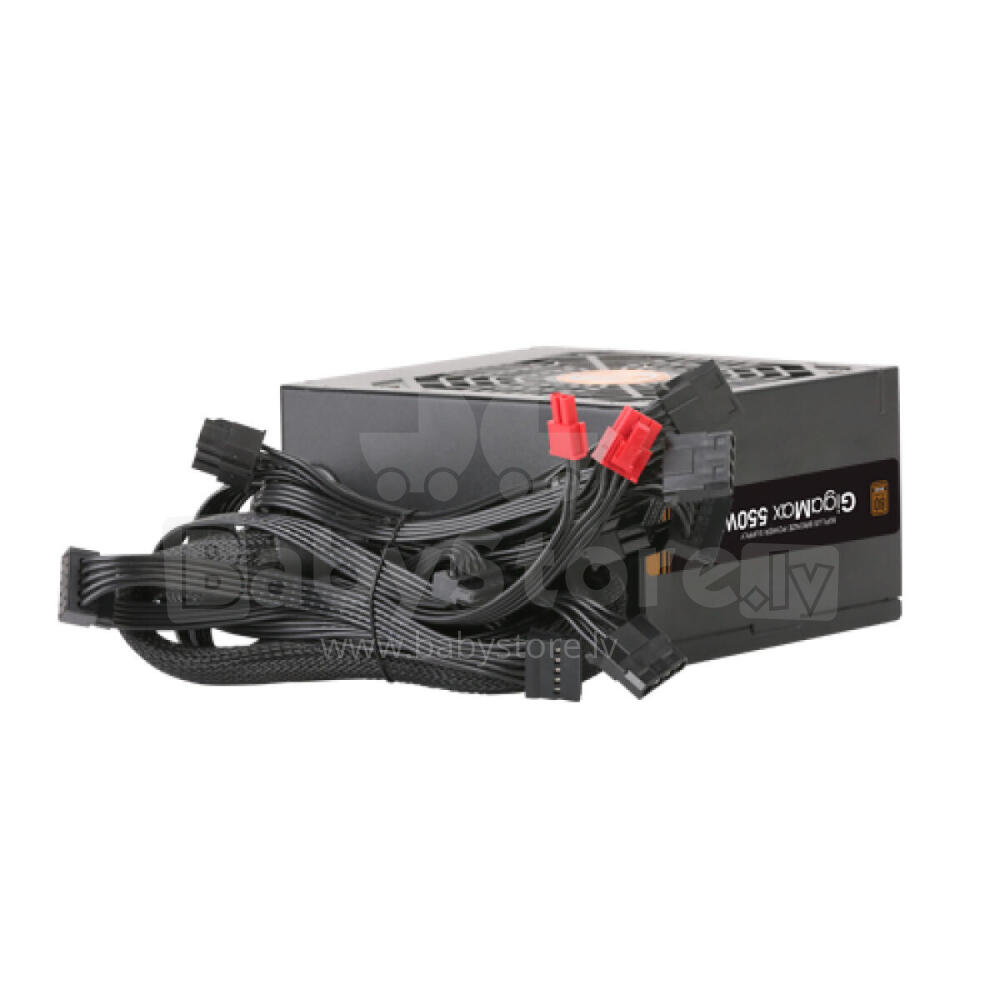

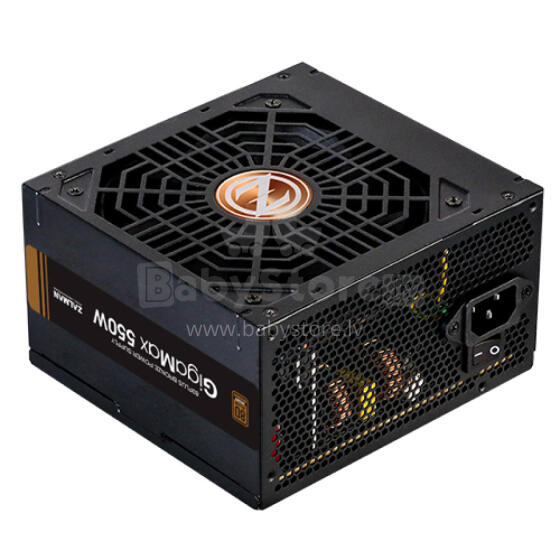

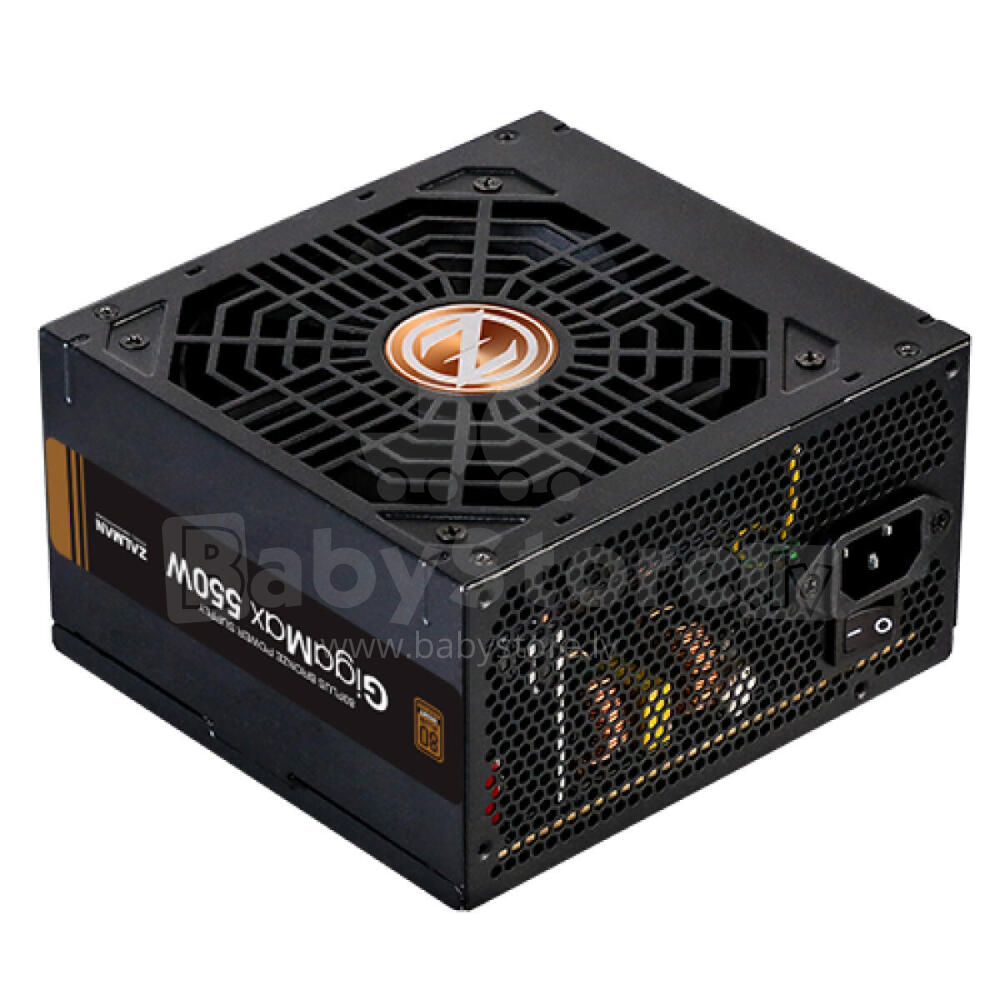

Zalman GigaMax 550W 80+Bronze
50.99
Receive your order at the parcel machine. Receive a package from 0.99
Pickup in store
Pick it up for free. The order will be fulfilled as expected, 30 June.
Delivery from 0.99 €. Delivery is planned 3 July.
ATTENTION! At this moment waiting time of this product is longer then necessary, kindly choose from the alternatives:
View available alternatives
Contact us
View available alternatives
80 Plus Bronze 230V EU certified Power Supply Unit. It supplies smooth power to the PC while reducing unnecessary power consumption by using high-performance parts that are very durable and reliable.
| Power | |
|---|---|
| Total power: | 550 W |
| AC input voltage: | 220 - 240 V |
| AC input frequency: | 50 - 63 Hz |
| Input current: | 6 A |
| Power factor: | 99 |
| Combined power (+3.3V): | 100 W |
| Power Factor Correction (PFC) type: | Active |
| Combined power (+12V): | 540 W |
| Combined power (-12V): | 3.6 W |
| Combined power (+5V): | 100 W |
| Max output current (+5Vsb): | 2.5 A |
| Combined power (+5Vsb): | 12.5 W |
| Max output current (+3.3V): | 18 A |
| Max output current (-12V): | 0.3 A |
| Max output current (+12V): | 45 A |
| Max output current (+5V): | 15 A |
| Efficiency: | 85% |
| Power protection features: | Over current, Over power, Over voltage, Short circuit, Under voltage |
| Ports & interfaces | |
| Number of SATA power connectors: | 2 |
| Peripheral (Molex) power connectors (4-pin): | 1 |
| PCI Express power connectors (6+2 pin): | 2 |
| Motherboard power cable length: | 55 cm |
| CPU power connector (4+4 pin): | Y |
| SATA power cable length: | 400 mm |
| Peripheral (Molex) power cable length: | 400 mm |
| PCI Express connector: | Y |
| PCI Express power cable length: | 50 cm |
| Cabling type: | Non-Modular |
| Motherboard power connector: | 20+4 pin ATX |
| CPU power cable length: | 65 cm |
| ATX power connector (20+4 pin): | Y |
| Performance | |
| Mean time between failures (MTBF): | 100000 h |
| 80 PLUS certification: | 80 PLUS Bronze |
| Supported motherboard form factors: | ATX, micro ATX, Mini-ITX |
| Purpose: | PC |
| Bearing technology: | FDB |
| Power supply unit (PSU) form factor: | ATX |
| Safety: | CB, CE, KC, EAC, RoHS |
| Certification: | 80 Plus, CB, CE, KC, EAC, RoHS |
| Country of origin: | China |
| Design | |
| Colour of product: | Black |
| Cooling type: | Active |
| Fan diameter: | 12 cm |
| Number of fans: | 1 fan(s) |
| Fan location: | Top |
| On/off switch: | Y |
| Tehniskās detaļas | |
| Sustainability certificates: | RoHS |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 40 °C |
| Storage relative humidity (H-H): | 5 - 95% |
| Storage temperature (T-T): | -40 - 70 °C |
| Operating relative humidity (H-H): | 5 - 85% |
| Weight & dimensions | |
| Width: | 140 mm |
| Depth: | 150 mm |
| Height: | 86 mm |
| Weight: | 1.95 kg |
| Packaging data | |
| Package type: | Box |
| Cables included: | AC, CPU, PCIe, Peripheral (Molex), SATA |
